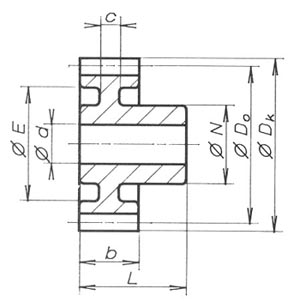

Stirnzahnrad, geradeverzahnt, Modul 2,0 Werkstoff Polyacetal, gespritzt Eingriffswinkel 20° Farbe Weiß b= 15mm L= 27mm Z=Zähnezahl Alle Maße in mm

Z ø Dk ø Do ø d ø N E c Artikel-Nr. Netto-Preis p. Stk. 12 28,0 24,0 8 18,5 - - SH 20 12 2,50 13 30,0 26,0 8 18,5 - - SH 20 13 2,65 14 32,0 28,0 8 18,5 - - SH 20 14 2,76 15 34,0 30,0 8 18,5 - - SH 20 15 2,90 16 36,0 32,0 8 17,5 23 6 SH 20 16 2,99 17 38,0 34,0 8 17,5 25 6 SH 20 17 3,05 18 40,0 36,0 8 17,5 26 6 SH 20 18 3,18 19 42,0 38,0 8 17,5 28 6 SH 20 19 3,20 20 44,0 40,0 10 20,0 29 6 SH 20 20 3,61 21 46,0 42,0 10 20,0 29 6 SH 20 21 3,70 22 48,0 44,0 10 20,0 29 6 SH 20 22 3,77 23 50,0 46,0 10 20,0 36 6 SH 20 23 3,90 24 52,0 48,0 10 24,0 36 6 SH 20 24 4,00 25 54,0 50,0 10 24,0 36 6 SH 20 25 4,29 26 56,0 52,0 10 24,0 40 6 SH 20 26 4,39 27 58,0 54,0 10 24,0 40 6 SH 20 27 4,56 28 60,0 56,0 10 24,0 40 6 SH 20 28 4,73 30 64,0 60,0 10 24,0 46 6 SH 20 30 4,96 32 68,0 64,0 10 26,0 46 6 SH 20 32 5,11 35 74,0 70,0 12 26,0 56 6 SH 20 35 5,17 36 76,0 72,0 12 26,0 56 6 SH 20 36 5,34 38 80,0 76,0 12 26,0 64 6 SH 20 38 5,49 40 84,0 80,0 12 26,0 64 6 SH 20 40 5,56 42 88,0 84,0 12 26,0 64 6 SH 20 42 5,66 45 94,0 90,0 14 30,0 70 6 SH 20 45 5,73 48 100,0 96,0 14 30,0 76 6 SH 20 48 5,80 50 104,0 100,0 14 30,0 80 6 SH 20 50 5,89 55 114,0 110,0 14 30,0 90 6 SH 20 55 5,96 60 124,0 120,0 14 30,0 100 6 SH 20 60 6,00 70 144,0 140,0 14 30,0 120 6 SH 20 70 6,15
