Stirnzahnrad, geradeverzahnt,
Modul 1,25
Werkstoff Polyacetal, gespritzt
Eingriffswinkel 20°
Farbe Weiß
b= 10mm
L= 19mm

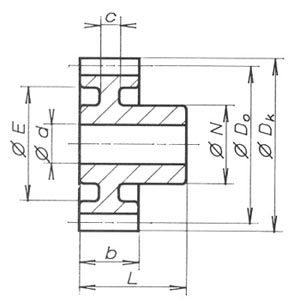

Z=Zähnezahl
Alle Maße in mm
|
| | | | Z | ø Dk | ø Do | ø d | ø N | E | c | Artikel-Nr. | Preis p. Stk. |
| 12 | 17,50 | 15,00 | 5 | 9 | - | - | SH 125 12 | 1,53 | | 13 | 18,75 | 16,25 | 5 | 9 | - | - | SH 125 13 | 1,55 | | 14 | 20,00 | 17,50 | 5 | 9 | - | - | SH 125 14 | 1,61 | | 15 | 21,25 | 18,75 | 5 | 9 | 13,5 | 7 | SH 125 15 | 1,64 | | 16 | 22,50 | 20,00 | 5 | 9 | 13,5 | 7 | SH 125 16 | 1,66 | | 17 | 23,75 | 21,25 | 5 | 9 | 13,5 | 7 | SH 125 17 | 1,72 | | 18 | 25,00 | 22,50 | 5 | 12 | 16,0 | 7 | SH 125 18 | 1,80 | | 19 | 26,25 | 23,75 | 5 | 12 | 16,0 | 7 | SH 125 19 | 1,87 | | 20 | 27,50 | 25,00 | 5 | 12 | 16,0 | 7 | SH 125 20 | 1,92 | | 21 | 28,75 | 26,25 | 6 | 15 | 19,0 | 7 | SH 125 21 | 1,98 | | 22 | 30,00 | 27,50 | 6 | 15 | 19,0 | 7 | SH 125 22 | 2,06 | | 23 | 31,25 | 28,75 | 6 | 15 | 19,0 | 7 | SH 125 23 | 2,11 | | 24 | 32,50 | 30,00 | 6 | 15 | 21,5 | 7 | SH 125 24 | 2,13 | | 25 | 33,75 | 31,25 | 6 | 15 | 21,5 | 7 | SH 125 25 | 2,39 | | 26 | 35,00 | 32,50 | 6 | 18 | 24,0 | 5,5 | SH 125 26 | 2,44 | | 27 | 36,25 | 33,75 | 6 | 18 | 24,0 | 5,5 | SH 125 27 | 2,49 | | 28 | 37,50 | 35,00 | 8 | 18 | 24,0 | 5,5 | SH 125 28 | 2,54 | | 30 | 40,00 | 37,50 | 8 | 18 | 28,0 | 5,5 | SH 125 30 | 2,56 | | 32 | 42,50 | 40,00 | 8 | 18 | 28,0 | 5,5 | SH 125 32 | 2,72 | | 35 | 46,25 | 43,75 | 8 | 18 | 28,0 | 5,5 | SH 125 35 | 2,82 | | 36 | 47,50 | 45,00 | 8 | 18 | 37,5 | 5,5 | SH 12 536 | 2,93 | | 38 | 50,00 | 47,50 | 8 | 18 | 37,5 | 5,5 | SH 12 538 | 3,01 | | 40 | 52,50 | 50,00 | 8 | 18 | 37,5 | 5,5 | SH 12 540 | 3,16 | | 42 | 55,00 | 52,50 | 8 | 18 | 37,5 | 5,5 | SH 125 42 | 3,19 | | 45 | 58,75 | 56,25 | 8 | 21 | 47,5 | 5,5 | SH 125 45 | 3,28 | | 48 | 62,50 | 60,00 | 8 | 21 | 47,5 | 5,5 | SH 125 48 | 3,39 | | 50 | 65,00 | 62,50 | 8 | 21 | 47,5 | 5,5 | SH 125 50 | 3,45 | | 52 | 67,50 | 65,00 | 10 | 21 | 57,0 | 5,5 | SH 125 52 | 3,57 | | 54 | 70,00 | 67,50 | 10 | 21 | 57,0 | 5,5 | SH 125 54 | 3,65 | | 55 | 71,25 | 68,75 | 10 | 21 | 57,0 | 5,5 | SH 125 55 | 3,72 | | 56 | 72,50 | 70,00 | 10 | 21 | 57,0 | 5,5 | SH 125 56 | 3,92 | | 60 | 77,50 | 75,00 | 10 | 21 | 67,0 | 5,5 | SH 125 60 | 4,10 | | 64 | 82,50 | 80,00 | 10 | 21 | 67,0 | 5,5 | SH 125 64 | 4,27 | | 65 | 83,75 | 81,25 | 10 | 21 | 67,0 | 5,5 | SH 125 65 | 4,39 | | 70 | 90,00 | 87,50 | 10 | 21 | 77,0 | 5,5 | SH 125 70 | 4,47 | | 72 | 92,50 | 90,00 | 12 | 21 | 77,0 | 5,5 | SH 125 72 | 4,54 | | 75 | 96,25 | 93,75 | 10 | 21 | 77,0 | 5,5 | SH 125 75 | 4,59 | | 80 | 102,50 | 100,00 | 12 | 24 | 87,0 | 5,5 | SH 125 80 | 4,71 | | 90 | 115,00 | 112,50 | 12 | 24 | 97,0 | 5,5 | SH 125 90 | 4,85 | | 100 | 127,50 | 125,00 | 12 | 24 | 107,0 | 5,5 | SH 125 100 | 5,00 | | 110 | 140,00 | 137,50 | 12 | 24 | 122,0 | 5,5 | SH 125 110 | 5,18 |
|
|
 |
 |
