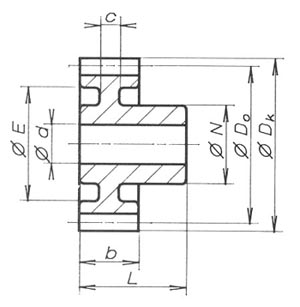

Stirnzahnrad, geradeverzahnt,
Modul 1,0

Werkstoff Polyacetal, gespritzt
Eingriffswinkel 20°
Farbe Weiß

b= 9mm
L= (von Z12 bis Z23) 17mm
(von Z24 bis Z140) 18mm

Z=Zähnezahl
Alle Maße in mm


Zø Dkø Doø dø NEcArtikel-Nr.Preis p. Stk.
1214,012,049--SH 10 121,29
1315,013,049--SH 10 131,32
1416,014,049--SH 10 141,34
1517,015,049--SH 10 151,34
1618,016,049--SH 10 161,38
1719,017,049--SH 10 171,40
1820,018,04913,56SH 10 181,43
1921,019,04913,56SH 10 191,53
2022,020,04913,56SH 10 201,59
2123,021,051216,06SH 10 211,61
2224,022,051216,06SH 10 221,64
2325,023,051216,06SH 10 231,64
2426,024,061519,06SH 10 241,66
2527,025,061519,06SH 10 251,72
2628,026,061519,06SH 10 261,80
2729,027,061519,06SH 10 271,82
2830,028,061522,06SH 10 281,85
3032,030,061522,06SH 10 301,87
3234,032,061824,54,6SH 10 321,92
3537,035,081824,54,6SH 10 352,06
3638,036,081828,04,6SH 10 362,11
3840,038,081828,04,6SH 10 382,13
4042,040,081828,04,6SH 10 402,19
4244,042,081837,04,6SH 10 422,34
4547,045,081837,04,6SH 10 452,54
4850,048,081837,04,6SH 10 482,65
5052,050,081837,04,6SH 10 503,01
5254,052,082147,04,6SH 10 523,10
5456,054,082147,04,6SH 10 543,19
5557,055,082147,04,6SH 10 553,28
5658,056,082147,04,6SH 10 563,39
5860,058,082158,04,6SH 10 583,48
6062,060,082147,04,6SH 10 603,60
6466,064,0102157,04,6SH 10 643,65
6567,065,0102157,04,6SH 10 653,67
7072,070,0102157,04,6SH 10 703,71
7274,072,0102167,04,6SH 10 723,81
7577,075,0102167,04,6SH 10 753,92
8082,080,0102167,04,6SH 10 804,10
8587,085,0102177,04,6SH 10 854,27
9092,090,0102177,04,6SH 10 904,54
100102,0100,0122487,04,6SH 10 1005,06
110112,0110,0122497,04,6SH 10 1105,09
120122,0120,01224107,04,6SH 10 1205,75
130132,0130,01224115,04,6SH 10 1306,00
140142,0140,01224125,04,6SH 10 1406,26
