Kegelräder, geradeverzahnt,
Übersetzung 1:1
Werkstoff Zinkdruckguss, gespritzt
Eingriffswinkel 20°
Alle Maße in mm |
|

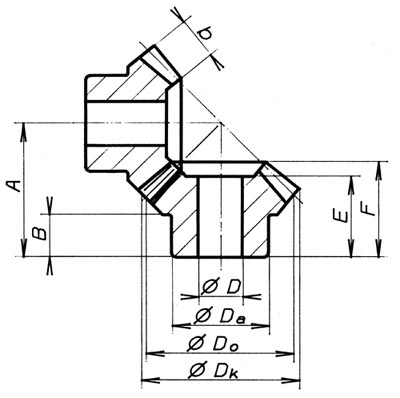

| | | | | m | Z | øDk | øDo | øDa | øD | B | E | F | A | b | Artikel-Nr. | Netto-Preis pro Paar |
| 1,0 | 16 | 17,3 | 16,0 | 12,0 | 6,0 | 7,5 | 13,1 | 13,1 | 17,7 | 4,5 | KD 10 16 16 | 1,35 | | 1,5 | 16 | 26,0 | 24,0 | 19,0 | 8,0 | 10,8 | 17,0 | 18,6 | 25,7 | 6,7 | KD 15 16 16 | 1,89 | | 2,0 | 16 | 34,6 | 32,0 | 23,0 | 10,0 | 10,0 | 19,2 | 21,3 | 30,0 | 9,6 | KD 20 16 16 | 3,39 | | 2,5 | 16 | 43,3 | 40,0 | 26,0 | 12,0 | 12,0 | 22,9 | 25,5 | 36,0 | 12,3 | KD 25 16 16 | 4,45 | | 3,0 | 16 | 52,3 | 48,0 | 30,0 | 14,0 | 13,0 | 26,0 | 29,3 | 43,0 | 14,0 | KD 30 16 16 | 6,70 | | 3,5 | 16 | 61,5 | 56,0 | 34,0 | 16,0 | 14,0 | 29,1 | 33,2 | 49,4 | 15,5 | KD 35 16 16 | 10,38 |
|
|
 |
 |
